SKU: T050801740RHS

270 FREESTANDING LED AWNING R

Vendor DARCHE

Regular price $1,799.00 NZD
Sale price $1,799.00 NZD Regular price $0.00 NZD
Sale Sold out
Unit price
/per
Tax included. Shipping calculated at checkout.
WEIGHT: kg
WARRANTY:

SHIPS FROM

This is a pre order item. We will ship your order when it comes in stock. Date subject to change.

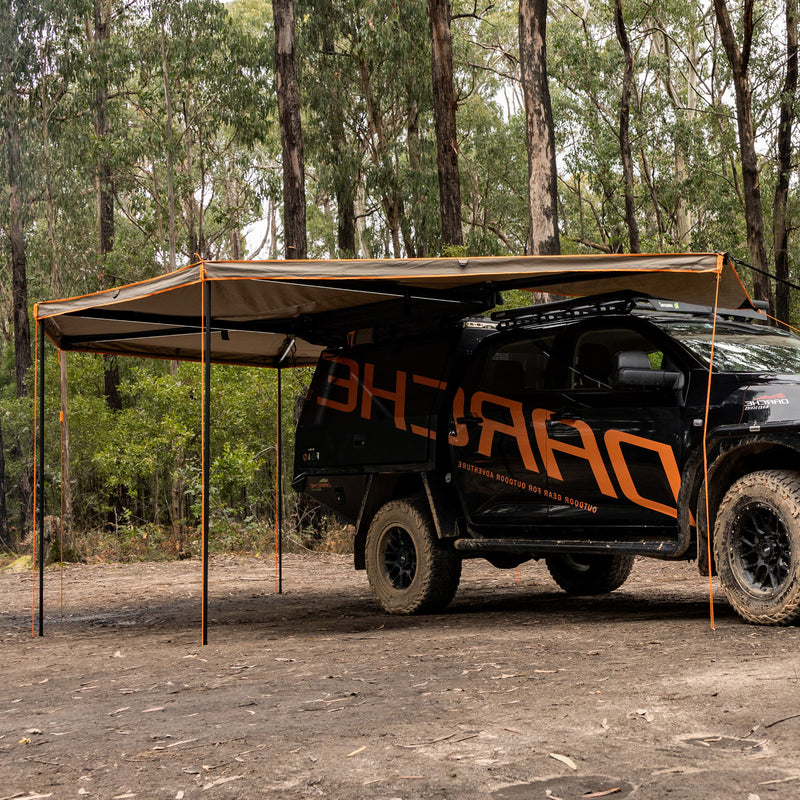

Over the course of the past two years, here at DARCHE we've delved deep into the world of design engineering, meticulously crafting and refining our latest innovation – the ground-breaking Eclipse 270 Freestanding LED Awning. We have rigorously tested and fine-tuned various design iterations and the driving force behind these extensive trials was simple – to ensure that when you step under our 270 freestanding awning, it's a product that's been put through its paces and proven to excel even before it hits the market.

Find out more about our wind test results here:

DARCHE stands apart in our commitment to making awnings that have truly been put to the test, and we are the first in Australia to extensively wind-test a freestanding awning. This commitment led us to a comprehensive 30-day wind testing period, exposing our awning to a spectrum of winds ranging from gentle breezes to severe gales according to the Beaufort scale.

In our rigorous testing, the Eclipse 270 Freestanding LED Awning showcased its strength by holding up until 50km/hr on its initial trial, and it withstood 55km/hr winds in the next round of testing after being repaired. The wind meter we employed for our testing was the Omega OM-CP-WIND101A wind speed data logger system, calibrated using data from the Australian Bureau of Meteorology and capable of recording wind speeds every second. For more information on the wind meter, please see here.

The Eclipse 270 Freestanding LED Awning further demonstrated its robustness by holding strong up to wind speeds of 90km/hr with the poles down and securely pegged. The remarkable part is that we were able to restore it to its full functionality post-testing. Backing up this robustness are specifically-engineered break points within the awning so in the case of failure, the awning will do so in a manner that avoids damage to your vehicle and facilitates simple repairs.

Based on results and observations gained over the wind testing period, the Eclipse 270 Freestanding LED Awning is rated up to 30km/hr winds whilst freestanding. However, our recommendation is that it you always deploy the included poles and tie down your awning properly using pegs and guy ropes as Mother Nature is unpredictable and we want to protect your investment.

Besides its durability, the Eclipse 270 Freestanding LED Awning is also chock-full of features for your comfort and convenience, including dual-colour dimmable LED strips fully-integrated in the rafter arms and a two-piece backing plate design with a fully-enclosed transit cover, which maximises weather resistance while still retaining the ability to easily move the awning from one vehicle to another.

At DARCHE, our dedication to crafting outdoor solutions that exceed expectations is unwavering. The culmination of two years of design engineering stands before you – a testament to our commitment to innovation, excellence, and, above all, your satisfaction. We're confident this is the best freestanding 270 awning on the market.

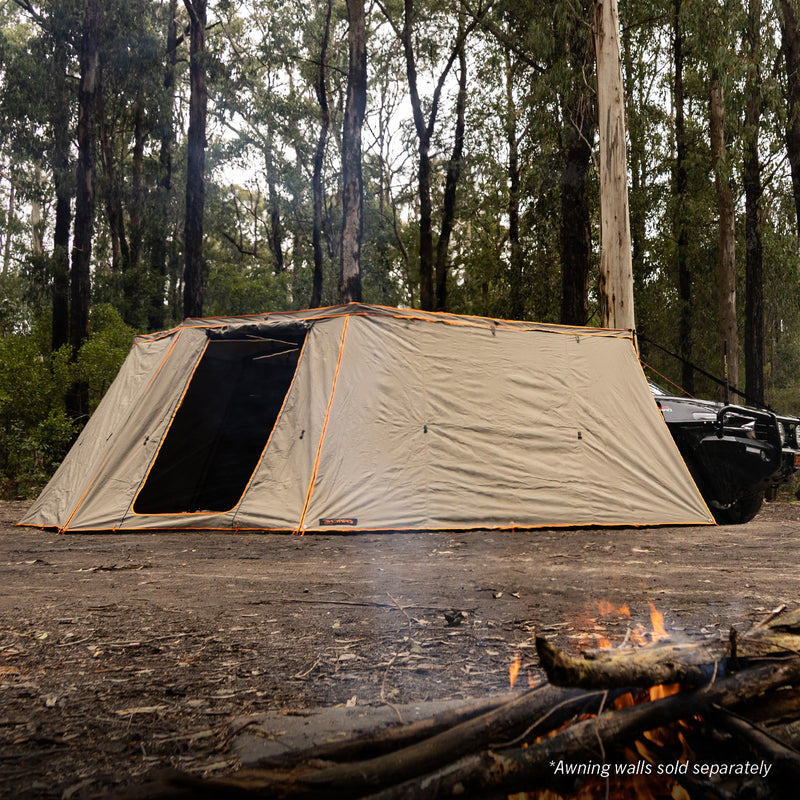

Gen 2 Awning walls perfectly complement this awning, enhancing its functionality and increases the overall coverage to 20.5m². They are available for purchase separately, and you can find them here:

* Please note that if this awning is mounted to a roof top tent, the poles must be used at all times to avoid damaging your roof top tent.

* Ensure that your roof mounting system is fit for purpose. The supplied mounting brackets suit most commercially available roof racks or steel basket setups, however for some platform racks long brackets (T050801751B or T050801753) may be required. For specific installation recommendations visit your local roof rack specialist.

  • Over 2 years of development and testing
  • Wind rated to 30 km/hr in freestanding mode

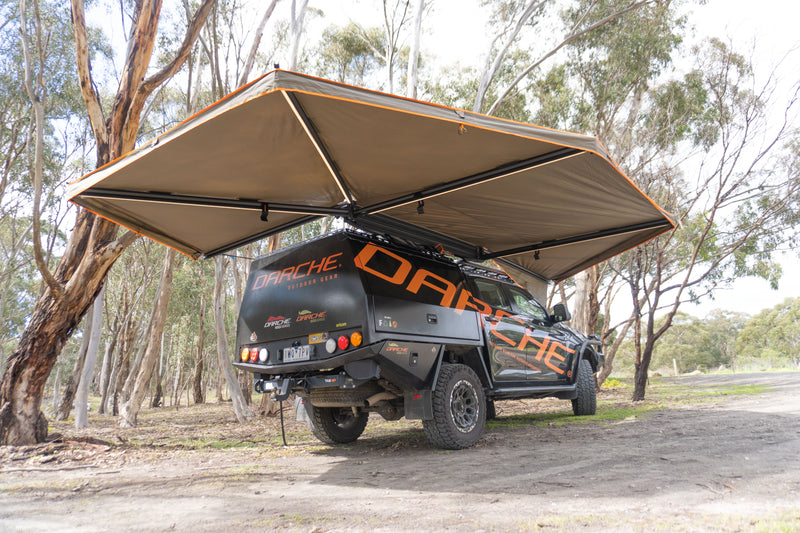

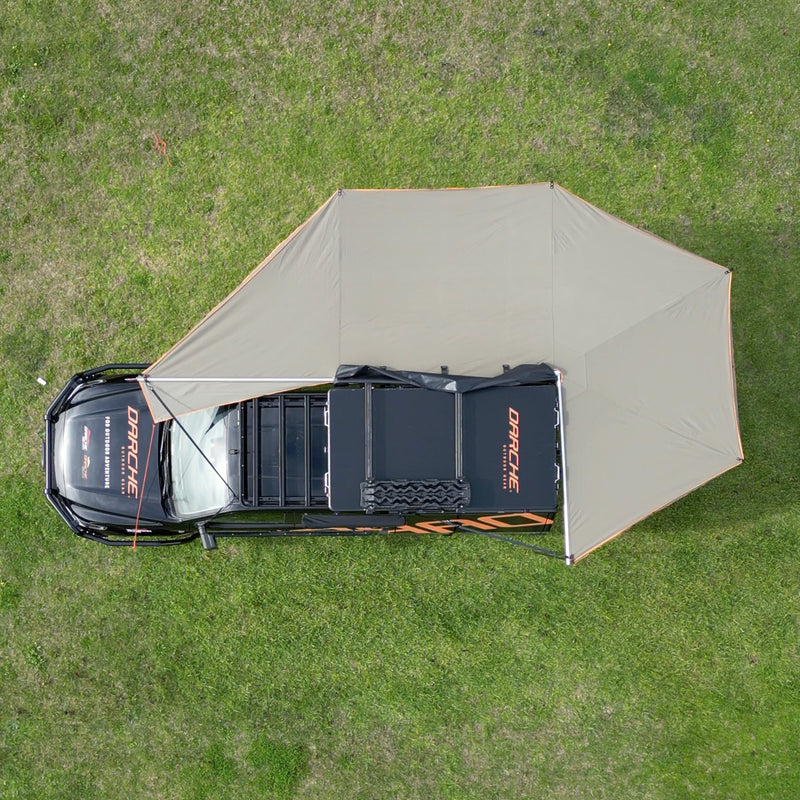

  • 11.5m² of cover and the most useable shape on the market

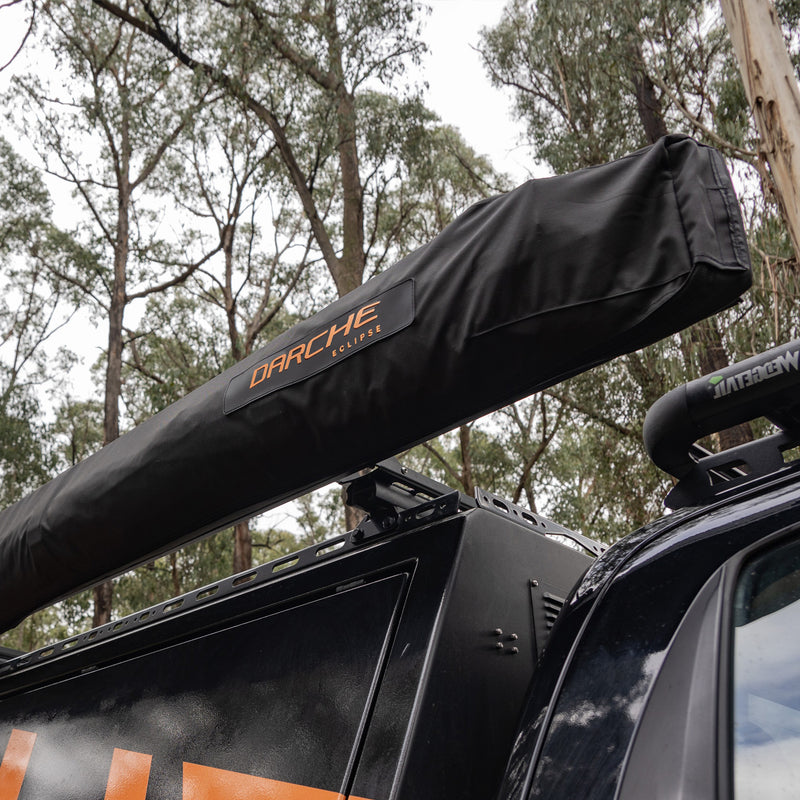

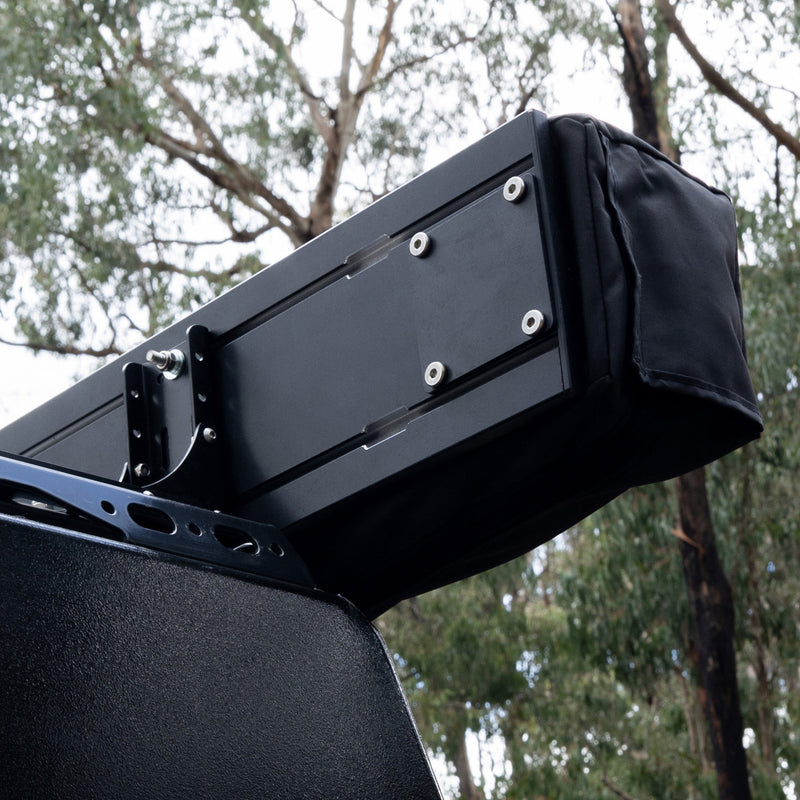

  • Fully-enclosed transit cover and two-piece backing plate design maximises weather resistance while still retaining the ability to easily move the awning from one vehicle to another
  • Height-adjustable brackets suits a wide range of setup types

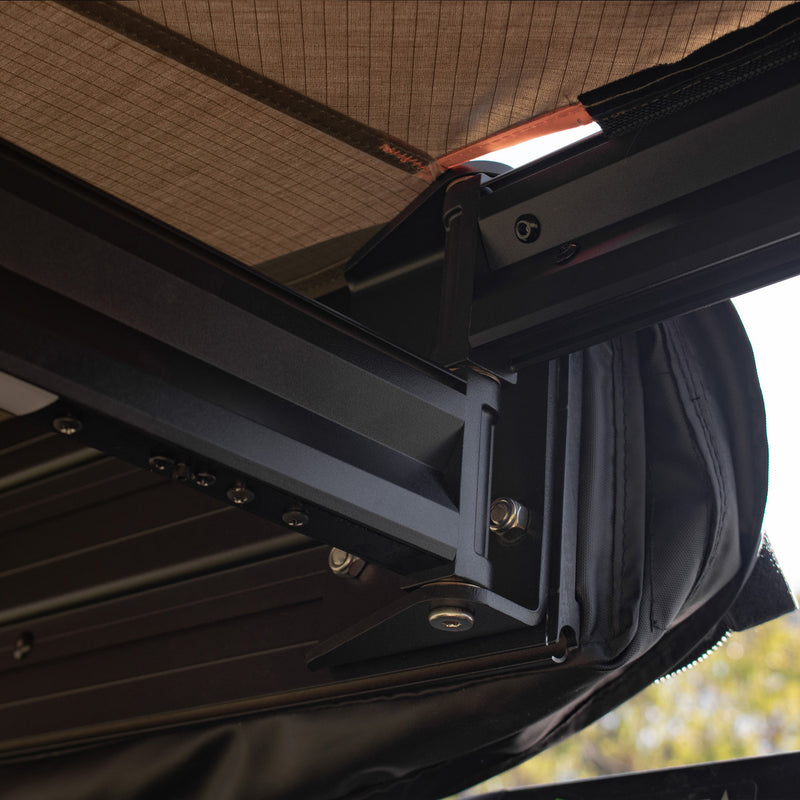

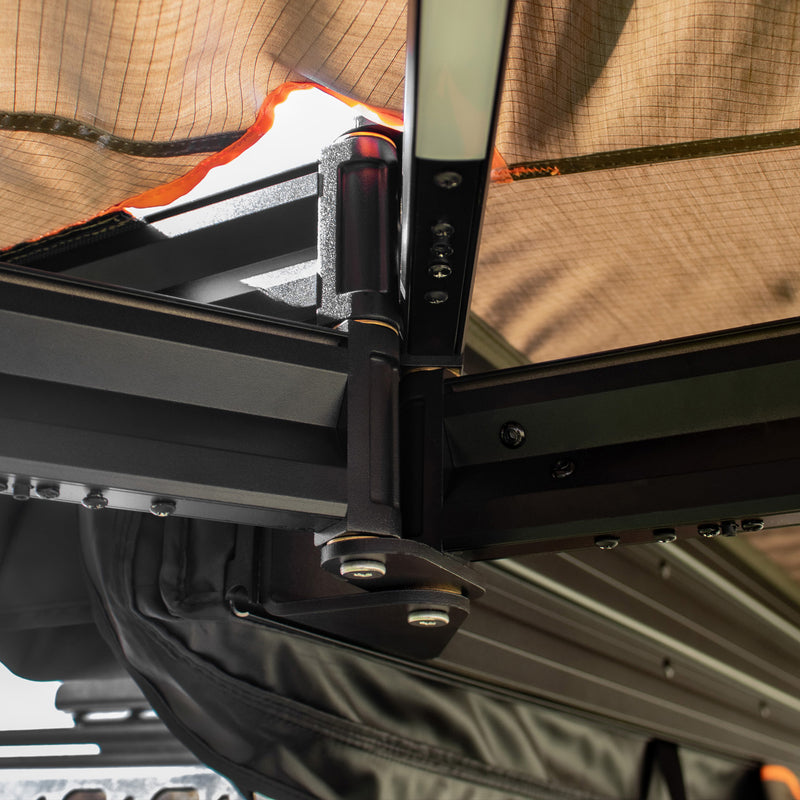

  • X-tube aluminium alloy rafter arms, backing plate & hinges designed using state-of-the-art techniques & simulation for incredible strength & durability

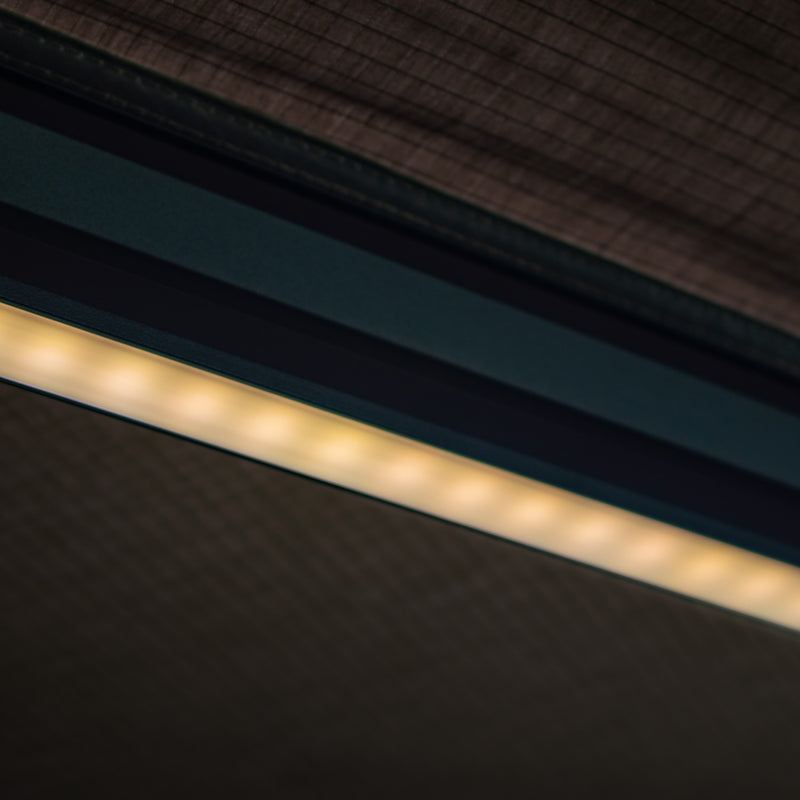

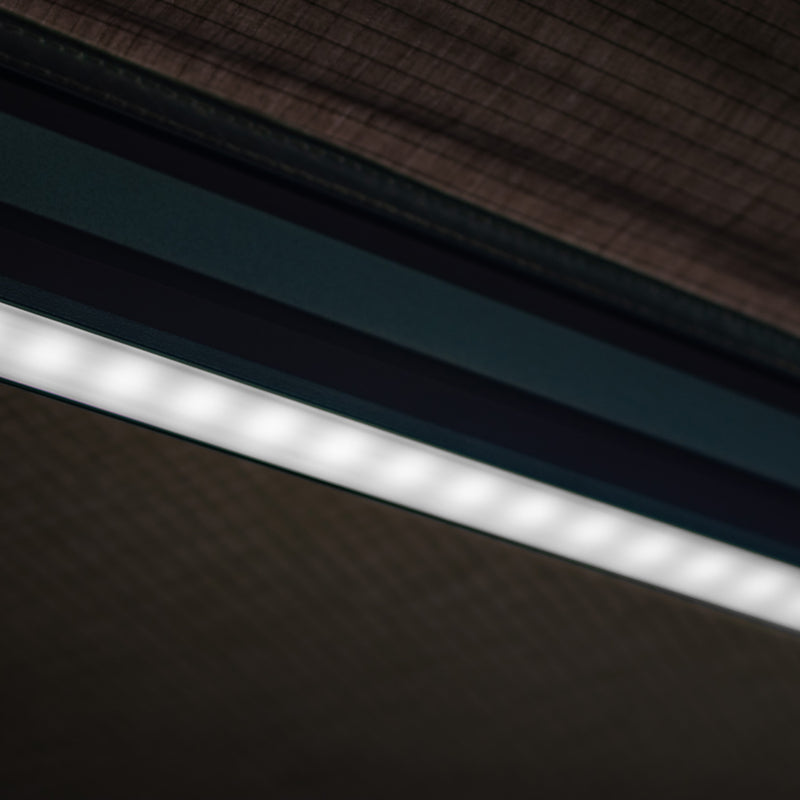

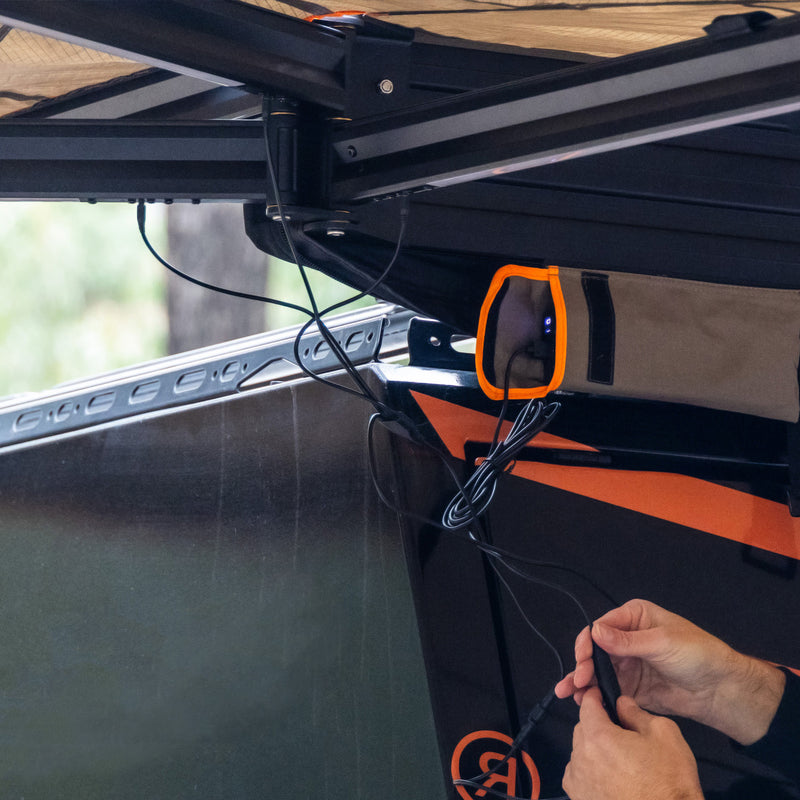

  • Integrated dual-colour (white and amber) dimmable LED lights on four rafter arms. (power bank not incl.)
  • Additional height for headroom and water run off
  • Heavy-duty 320gsm ripstop polycotton canvas with 3000mm waterhead rating
  • All parts are designed to be replaceable for easy and low cost repair
  • Compatible with rooftop tent awning bracket kits (T050801945 and T050801946, sold separately)
  • Wall kits available (sold separately)
  • Freestanding Wind Rating 30 km/hr
  • Max. Head Height 2600mm
  • Suits Vehicle Height 1400 to 2600mm
  • Mount Type Side
  • Fabric Material: 320gsm Ripstop Polycotton Canvas
  • Frame Material: Extruded Aluminium Alloy
  • Transit Cover Material: 820D Polyester Oxford
  • Waterhead Rating 3000mm
  • UPF Rating 50+
  • Gender
  • Sleeping Bag Comfort
  • Maximum Volume L
  • Fits
  • Sleeping Capacity
  • External Dimensions mm
  • Sleeping Area mm
  • Packed Dimensions mm
  • Rated Capacity kg
  • Coverage
  • Internal Storage and Bedding
  • Valve Quantity
  • Internal Dimensions mm
  • Suits Product
  • Weight kg
  • Warranty
FEATURES
  • Over 2 years of development and testing
  • Wind rated to 30 km/hr in freestanding mode
  • 11.5m² of cover and the most useable shape on the market
  • Fully-enclosed transit cover and two-piece backing plate design maximises weather resistance while still retaining the ability to easily move the awning from one vehicle to another
  • Height-adjustable brackets suits a wide range of setup types
  • X-tube aluminium alloy rafter arms, backing plate & hinges designed using state-of-the-art techniques & simulation for incredible strength & durability
  • Integrated dual-colour (white and amber) dimmable LED lights on four rafter arms. (power bank not incl.)
  • Additional height for headroom and water run off
  • Heavy-duty 320gsm ripstop polycotton canvas with 3000mm waterhead rating
  • All parts are designed to be replaceable for easy and low cost repair
  • Compatible with rooftop tent awning bracket kits (T050801945 and T050801946, sold separately)
  • Wall kits available (sold separately)
SPECIFICATIONS
  • Freestanding Wind Rating 30 km/hr
  • Max. Head Height 2600mm
  • Suits Vehicle Height 1400 to 2600mm
  • Mount Type Side
  • Fabric Material: 320gsm Ripstop Polycotton Canvas
  • Frame Material: Extruded Aluminium Alloy
  • Transit Cover Material: 820D Polyester Oxford
  • Waterhead Rating 3000mm
  • UPF Rating 50+
  • Gender
  • Sleeping Bag Comfort
  • Maximum Volume L
  • Fits
  • Sleeping Capacity
  • External Dimensions mm
  • Sleeping Area mm
  • Packed Dimensions mm
  • Rated Capacity kg
  • Coverage
  • Internal Storage and Bedding
  • Valve Quantity
  • Internal Dimensions mm
  • Suits Product
  • Weight kg
  • Warranty
VIDEOS

Customer Reviews

Based on 15 reviews
87%
(13)
13%
(2)
0%
(0)
0%
(0)
0%
(0)
P
Peter A

Really happy the service and delivery was outstanding and too the product.

c
cherie Johansen
A cut above the rest

Previously owned competitors branded awning BUT this one steals the show!
Weather flaps over side wall attachment zippers provide a leak-proof dry open space, awning fits easily back into its bag and arms are rock solid.
Side walls are wide and transgress across multiple facets of the awning meaning less vertical joining zippers which eliminates an over worked zipper issue.
Well worth the money…awning and walls.

M
Mark P
Expensive but amazing and worth it

The awning was relatively easy to install and works well on my LC200 roof bars. The brackets are solid and once tightened really support the open awning well. I used a large washer on the outer bolt to help provide more lift. It opens and pack very easily and the poles drop down for added support (and really you have to if you want to use the led) the led is amazing but the long wire to the front is annoying and should be inside nearer the target arm

The rear tailgate hits one arm and i cant avoid it but have cable tied packing to that one spot.

Improvements
The cost makes justifying walls very hard - but the quality is solid
Needs the Long wire to the front led put inside casing as it dangles
It should come with anti theft screws at this price

Finally i like that put away it doesn’t look flashier than a normal eclipse so not attracting extra attention. It really is easy to setup/packup and looks stunning

I have a simpson trip next month in June 2024 and that will really test it’s robustness and functionality- i think it will be fantastic

D
Daniel Willett
Great awning

Impressive build quality and easy setup

N
Nathan Harris
Best 270 Freestanding Awning on the market

Incredible awning! Unlike other awnings I’ve owned, It’s actually enjoyable to use as it’s so easy to deploy and pack away. There is no fighting with the bag and everything just works. The build quality and materials are second to none. If you are in the market for a freestanding 270, don’t bother with anything else.
